TruLyta TL100 Electrolyte Analyzer
Portable electrolyte analyzer with 5-in-1 cartridge testing, low sample volume, and results in about 5 minutes.
The TruLyta TL100 is a portable electrolyte analyzer designed for fast and efficient point-of-care electrolyte testing. It uses a 5-in-1 cartridge for simultaneous detection of K+, Na+, Cl-, iCa²+, and iMg²+, requiring only about 110 μL of sample and delivering results in approximately 5 minutes. It features patented dry electrochemical technology, microfluidic testing, built-in barcode scanner, thermal printer, rechargeable battery operation, and LIS/HIS connectivity support.
Specifications
Analyzer Type
Electrolyte analyzer
Measured Parameters
K+, Na+, Cl-, iCa²+, and iMg²+
Cartridge Type

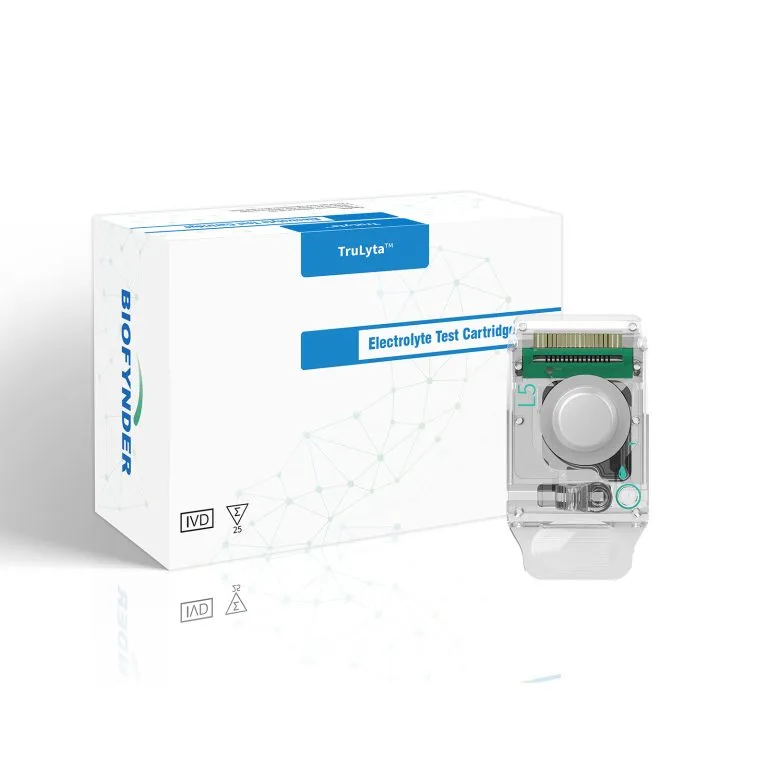

5-in-1 cartridge
Sample Types
Venous whole blood, plasma, and serum
Method
Electrochemistry/Microfluidic method
Blood Sample Volume
110 μL
Test Time
5 ± 0.5 minutes including calibration
Calibration
Built-in calibration solution; calibration + results in <5 minutes
Technology
Patented dry electrochemical technology with molecular probes
Exclusive Testing
Ionized magnesium iMg²+ testing
Display Screen
7-inch color touchscreen
Printer
Built-in thermal printer
Code Scanner
Built-in barcode scanner
Memory Capacity
99,999 results
Connectivity
Supports LIS/HIS integration
Maintenance
No fluidic pathways for low maintenance
Cartridge Storage
Room temperature storage with 8-month shelf life
Battery
Battery-powered, 50+ tests per charge
K+ Test Range
1.0–15.0 mmol/L; Accuracy: ±3.0%; Precision: ≤1.5%; Stability: ≤2.0%
Na+ Test Range
100–200 mmol/L; Accuracy: ±3.0%; Precision: ≤1.5%; Stability: ≤2.0%
Cl- Test Range
65–160 mmol/L; Accuracy: ±3.0%; Precision: ≤1.5%; Stability: ≤2.0%
iCa²+ Test Range
0.25–4.00 mmol/L; Accuracy: ±5.0% or ±0.05 mmol/L; Precision: ≤1.5%; Stability: ≤3.0%
iMg²+ Test Range
0.2–1.5 mmol/L; Accuracy: ±5.0% or ±0.05 mmol/L; Precision: ≤3.0%; Stability: ≤3.0%
Operating Temperature
18–30°C
Dimensions
240 × 120 × 110 mm ±10 mm
Weight
1.5 ± 0.2 kg with battery
